4.2 inch Three colors yellow epaper display e-ink with HAT connector demo board

GDEW042C37+DESPI-C02
E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports yellow, black, and white three-color. HAT connect board.
Price:
USD
$26.33
    Please select the information you wantX
Quantity:
-
+
(50 available)
  • Description
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

General Description

This is an E ink E paper display panel GDEW042C37, 4.2 inch, 400*300 resolution and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. This e-paper display support black, white and yellow.

This connection board DESPI-C02 is aim to help  users to learn how to use the E-paper Display easier, and it is used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) : 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.
Feature
· Three colors, black, white and yellow
· 296x128 resolution
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available
 STM32 / Arduino Raspberry Pi
Main Parameters

Part Number

GDEW042C37

Type

Dot Matrix

Resolution

400*300(DPI:120)

Outline Size(mm)

91*77*1.18

Actve Size(mm)

84.8*63.6

Pixel Pitch(mm)

0.212*0.212

Operating Temp.

0~40C

Storage Temp.

-25~60C

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black,White, Yellow

Interface

SPI

Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 28


Related Products

Part Number

Color

Resolution

Features

    Refresh Time

GDEW042T2

B/W

400x300

Partial refresh, 4 Grayscale

 3S

GDEW042C37

B/W/Y

400x300

Three colors

28S

GDEW042Z15

B/W/R

400x300

Three colors

15S
GDEH042Z96 B/W/R 400x300 Three colors 16S

Matched Demo Kit (Highly Recommend)

UTB8OqyuEyDEXKJk43Oqq6Az3XXaU      27.78USD
Visit Following link to order the Demo that matched with ts e-paper:
https://zh-tw.buyepaper.com/e-paper-display-development-kit-with-spi-interface-and-micro-usb-interface-p0031-p0031.html

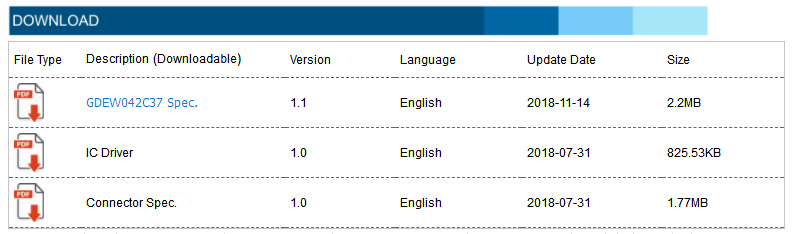

Specification download
http://www.e-paper-display.com/products_detail/productId=379.html
